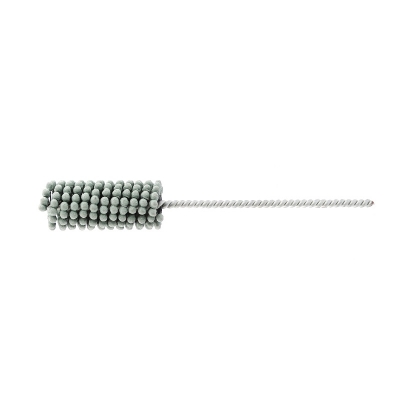

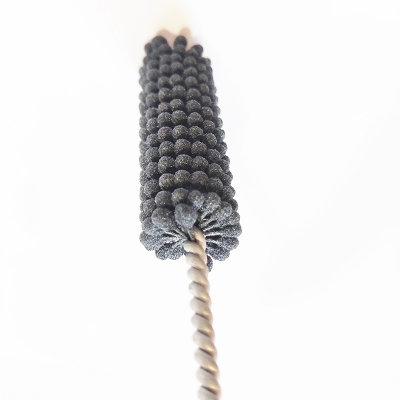

Huixi Brush is a professional honing brush manufacturer based in Shanghai, China. Our honing brushes — commonly known as flex hones or flexible hone brushes — are designed for cylinder bore finishing, surface conditioning, deburring, and controlled material removal inside cylindrical bores and passages. Unlike rigid honing tools, flexible hone brushes use a ball-end abrasive construction mounted on flexible stems that self-center in the bore and conform to the bore geometry, producing a consistent cross-hatch finish with plateau surface characteristics ideal for oil retention.

How Flex Hone Brushes Work

Each flexible hone brush consists of a series of abrasive globules bonded to flexible nylon stems radiating from a central wire core. When rotated inside a bore, the flexible stems allow the abrasive balls to follow the bore profile and apply consistent, uniform pressure around the full circumference. The result is a controlled surface finish — smooth enough to eliminate sharp burrs and micro-irregularities, while rough enough to retain lubricating oil for moving components.

Available Abrasive Materials

• Silicon carbide (SiC) — The most common abrasive for general cylinder honing, brake rotor conditioning, and surface finishing on cast iron, aluminum, and steel bores

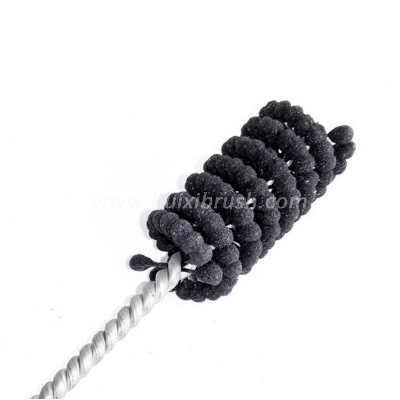

• Aluminum oxide (Al₂O₃) — For harder materials and applications requiring a finer, more controlled surface finish
• Ceramic grain — Premium abrasive for precision bore finishing and deburring where tight surface finish tolerances are required

Common Applications

• Engine cylinder bore honing and plateau finishing after reboring

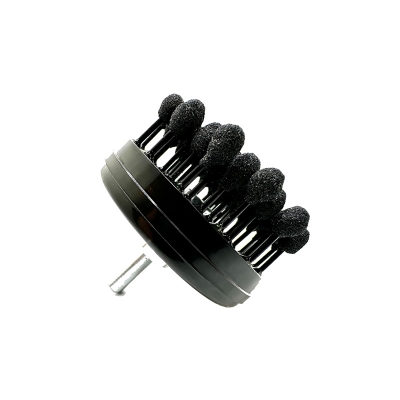

• Brake rotor and drum surface conditioning before pad bedding
• Hydraulic and pneumatic cylinder bore finishing

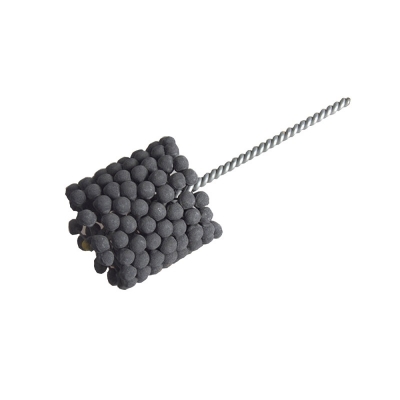

• Diesel engine cylinder liner honing
• Inner bore deburring after drilling, reaming, or machining
• Surface conditioning of pump housings and valve bodies

Specifications

• Bore diameter range: from approx. 10mm to 200mm and above (custom)
• Abrasive grit grades: 60, 80, 120, 180, 240, 320 and finer
• Shank: straight wire shank for drill chuck or flexible extension mounting
• Custom bore sizes, abrasive grades, and stem lengths available on request

Related Products

For inner bore deburring using abrasive nylon tube brushes, see our tube deburring brush range. For disc format abrasive nylon deburring of flat surfaces, see our disc brush page. For abrasive nylon in a wheel format, see our nylon wheel brush range.

Contact us with your bore diameter, required abrasive grade, material type, and application details for a custom honing brush quote or sample.
